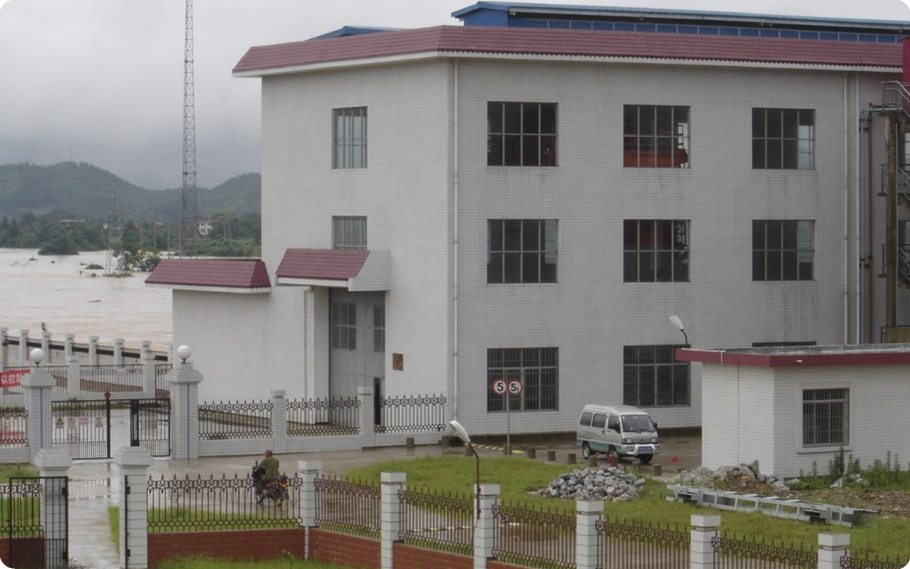

Longxi power station in Guangxi province

Longxi power station in Guangxi province

      It located at upstream of the Luoqing River on Yongfu town Guilin city Guangxi province. Its installed capacity is 2×5MW and the runner diameter is Φ4000mm.The first unit began to operate on 1st May,2007.

parameter of the turbine

Rated output power：5208kw

Rated water head ：5.2m

Rated revolving speed：380r/min

Rated discharge：110.2m3/s

Runner diameter：4000mm

Parameter of generator

Rated power：5000kw

Rated voltage：6.3Kv

Power factor：0.9

Rated frequency：50HZ

Pole number：52
